九州電通株式会社

水晶振動子・水晶発振器・水晶フィルタ
CRYSTAL UNITS・CRYSTAL OSCILLATORS・CRYSTAL FILTERS

水晶振動子 Crystal Unit

MHz帯水晶振動子 MHz Range Crystal Unit

Series size Frequency
Range
Feature RoHS Data
Sheet

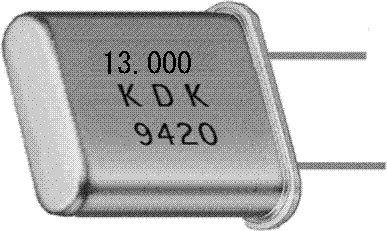

HC-49/U
HC-49/T
SX series
hc-49/u 11.05×4.65×13.46mm
11.05×4.65×11.4mm
1.800 - 225.000MHz Microprocessor Crystal
Fundamental to 7th Overtone
RoHS
(49/U)
rohs
RoHS
(49/T)
rohs
DataSheet
(49/U
49/T)
pdf
DataSheet
(SX)
pdf
UM-1
UM-5
UM-4
um-1 7.8×3.2×8.0mm
7.8×3.2×6.0mm
7.8×3.2×4.8mm
4.000 - 150.000MHz Fundamental 3rd & 5th Overtone RoHS
(UM-1)
rohs
RoHS
(UM-5)
rohs
DataSheetpdf
HC-49/S3
HC-49/SS
hc-49/s3 11.05×4.65×3.5mm
11.05×4.65×2.35mm
3.200 - 70.000MHz
8.000 - 70.000MHz
HC-49/S3=3.5mm High
HC-49/SS=2.35mm High
RoHS
(49/S3)
rohs
RoHS
(49/SS)
rohs
DataSheetpdf
SD3
SSD
sd3 12.9×4.8×4.5mm
12.9×4.8×3.0mm
3.200 - 70.000MHz
8.000 - 70.000MHz
SD3=4.5mm High
SSD=3.0mm High
RoHS
(SD3)
rohs
RoHS
(SSD)
rohs
DataSheetpdf
SD3-LE
SSD-LE
sd3-le 12.9×4.8×4.5mm
12.9×4.8×3.0mm
12.9×4.8×2.6mm
3.500 - 65.000MHz Low ESR type
SD3=4.5mm High
SSD=3.0mm High
SSD(T)=2.6mm High
RoHS
(SD3LE)
rohs
RoHS
(SSDLE)
rohs
DataSheetpdf
SD3(3) sd3(3) 11.4×6.0×4.1mm 3.500 - 65.000MHz 3 Lead type RoHSrohs DataSheetpdf
KQA kqa 12.4×5.1mm 3.500 - 65.000MHz SMD Foot Pattern RoHSrohs pdf
KQC kqc 13.5×5.15mm 3.500 - 65.000MHz SMD Foot Pattern RoHSrohs DataSheetpdf
KMG kmg 11.0×5.0×2.1mm 3.500 - 65.000MHz Low Frequency,High Reliable Type RoHSrohs DataSheetpdf
LID lid 11.8×5.5×2.1mm 3.155 - 70.000MHz Low Frequency RoHSrohs DataSheetpdf
MET met 7.5×5.0×1.1mm 6.000 - 100.000MHz RoHSrohs DataSheetpdf
LIM-T lim 7.5×5.0×1.4mm 5.000 - 84.000MHz RoHSrohs DataSheetpdf
TOP top 6.0×3.5×1.1mm 8.000 - 67.000MHz High Reliable Type RoHSrohs DataSheetpdf
LAP lap 6.0×3.5×1.4mm 8.000 - 67.000MHz RoHSrohs DataSheetpdf
DOT dot 5.0×3.2×0.8mm 8.000 - 200.000MHz AT Fundamental Design available RoHSrohs DataSheetpdf
LOT lot 5.0×3.2×1.0mm 8.000 - 150.000MHz RoHSrohs DataSheetpdf
SEG seg 3.2×2.5×0.8mm 10.000 - 200.000MHz AT Fundamental available
Overtone Frequency also available
RoHSrohs DataSheetpdf
SEG-T seg-t 3.2×2.5×0.35mm 16.000 - 90.000MHz 0.35mm Thickness 極薄タイプ RoHSrohs DataSheetpdf
MAS mas 2.5×2.0×0.7mm 12.000 - 200.000MHz AT Fundamental Design available RoHSrohs DataSheetpdf
MAS-T mas-t 2.5×2.0×0.35mm 24.000 - 90.000MHz 0.35mm Thickness 極薄タイプ RoHSrohs DataSheetpdf
BIT bit 2.0×1.6×0.5mm 20.000 - 200.000MHz AT Fundamental Design available RoHSrohs DataSheetpdf

kHz帯水晶振動子 kHz Range Crystal Unit

Series size Frequency
Range
Feature RoHS Data
Sheet
NC-26
NC-38
nc-38 φ2×6.0mm
φ3×8.3mm
32.768kHz RoHS
(NC38)
rohs
DataSheetpdf
NEW
KC-306
nc-306 8.01x3.8x2.54mm 32.768kHz RoHS DataSheetpdf
NC-146 nc-146 7.0x1.5x1.4mm 32.768kHz RoHSrohs DataSheetpdf
NEW
KC31M
No image 3.2x1.5x0.9mm 32.768kHz RoHS DataSheetpdf
CC1V-T1A cc1v-t1a 8.0x3.7x1.75mm 30kHz - 2.0MHz kHz帯、低周波対応
TA=-40~85℃(Standard)
TB=-40~125℃
TC=-55~125℃
RoHSrohs DataSheetpdf
CC7V-T1A cc7v-t1a 3.2x1.5x0.90mm 32.768kHz TA=-40~85℃(Standard)
TB=-40~125℃
TC=-55~125℃
RoHSrohs DataSheetpdf
CM7V-T1A
CM7V-T1A0.3
cm7v-t1a 3.2x1.5x0.65mm 32.768kHz TA=-40~85℃(Standard)
TB=-40~125℃
TC=-55~125℃
RoHSrohs DataSheetpdf
3.2x1.5x0.35mm 32.768kHz 0.35mm Thickness 極薄タイプ
TA=-40~85℃(Standard)
TB=-40~125℃
TC=-55~125℃
RoHS
CM8V-T1A cm8v-t1a 2.0x1.2x0.60mm 32.768kHz TA=-40~85℃(Standard)
TB=-40~125℃
TC=-55~125℃
RoHSrohs DataSheetpdf
NEW
CM9V-T1A
cm9v-t1a 1.6x1.0x0.50mm 32.768kHz TA=-40~85℃(Standard)
TB=-40~125℃
TC=-55~125℃
RoHS DataSheetpdf

SCカット水晶振動子 SC-CUT Crystal Unit

Series size Frequency
Range
Feature RoHS Data
Sheet
HC-43/U hc-43/u 10.67×4.27×12.95mm 10.000 - 130.000MHz SC-CUT Crystal for OCXO RoHSrohs DataSheetpdf
TO-5
TO-8
to-8 φ9.65×6.45mm
φ14.73×6.53mm
10.000 - 100.000MHz SC-CUT Crystal for OCXO RoHS DataSheetpdf

TOP
