RTCモジュール　Real Time Clock Module

Series size Interface Current
@3.0V
(typ.)		 Time
Accuracy
@25℃		 Temp
Comp
-40+85℃		 Feature RoHS Data
Sheet
RV-8564-C2 rv-8564-c2 5.0×3.2×1.2mm I2C BUS 250nA ±20ppm TA=-40~85℃(Standard) RoHS DataSheetpdf
RV-3029-C2 rv-3029-c2 5.0×3.2×1.2mm I2C BUS 800nA ±6.0ppm Temp compensated
TA=-40~85℃(Standard)
TB=-40～+125℃		 RoHS DataSheetpdf

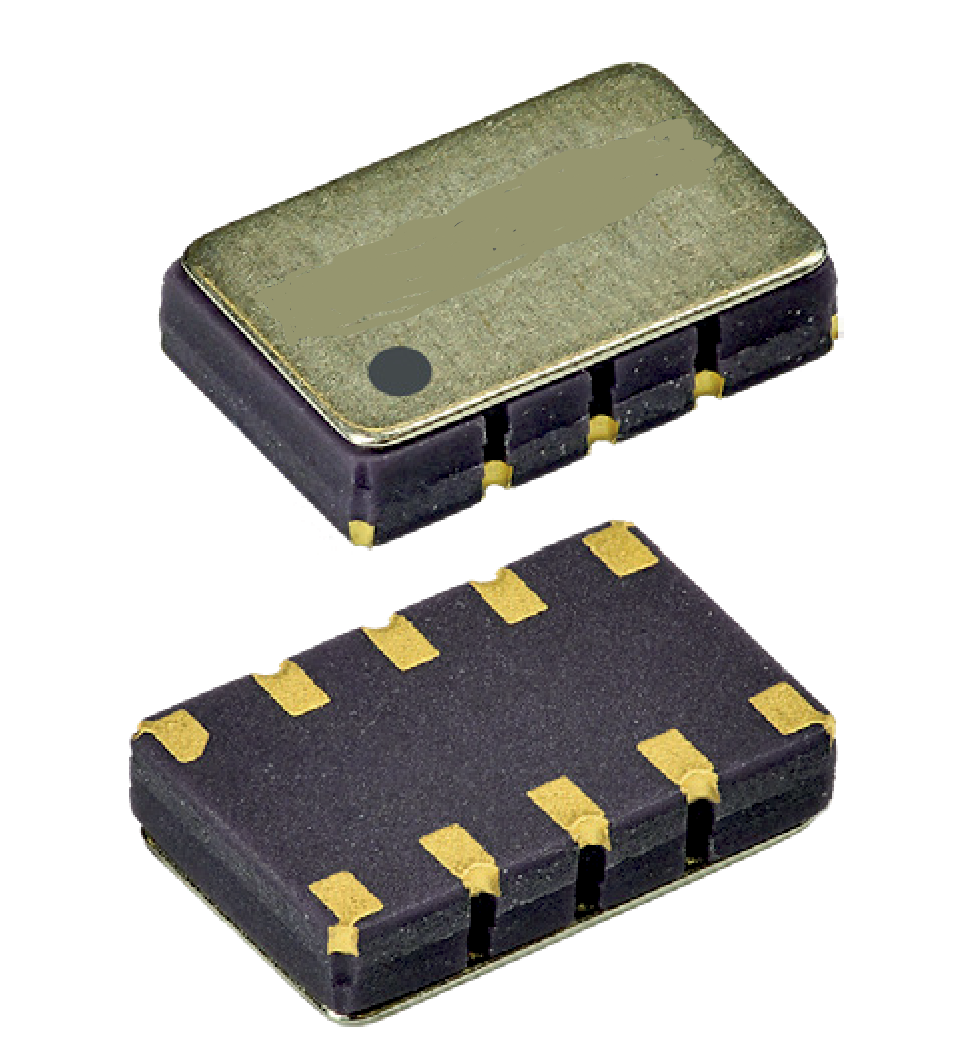

RV-3029-C3 rv-3029-c3 3.7×2.5×0.9mm I2C BUS 800nA ±6.0ppm NRND(非推奨品)
Temp compensated
TA=-40~85℃(Standard)
TB=-40～+125℃		 RoHS DataSheetpdf
RV-8564-C3 rv-8564-c3 3.7×2.5×0.9mm I2C BUS 250nA ±20ppm Small Package
TA=-40~85℃(Standard)		 RoHS DataSheetpdf
RV-8523-C3 rv-8523-c3 3.7×2.5×0.9mm I2C BUS 130nA ±20ppm Low power consumption
TA=-40~85℃(Standard)		 RoHS DataSheetpdf
NEW
RV-3129-C3		 rv-3129-c3 3.7×2.5×0.9mm I2C BUS 800nA ±6.0ppm Temp compensated
TA=-40~85℃(Standard)
TB=-40～+125℃		 RoHS DataSheetpdf
NEW
RV-3028-C7		 rv-3028-c7 3.2×1.5×0.8mm I2C BUS 45nA ±1ppm Low power consumption
TA=-40~85℃(Standard)		 RoHS DataSheetpdf
RV-4162-C7 rv-4162-c7 3.2×1.5×0.8mm I2C BUS 350nA ±20ppm Smallest Package
TA=-40~85℃(Standard)		 RoHS DataSheetpdf
NEW
RV-8263-C7		 rv-8263-c7 3.2×1.5×0.8mm I2C BUS 190nA ±20ppm Low power consumption
TA=-40~85℃(Standard)		 RoHS DataSheetpdf
RV-8803-C7 rv-8803-c7 3.2×1.5×0.8mm I2C BUS 240nA ±3.0ppm Temp compensated
TA=-40~85℃(Standard)		 RoHS DataSheetpdf
NEW
RV-3032-C7		 rv-3032-c7 3.2×1.5×0.8mm I2C BUS 160nA ±2.5ppm Temp compensated
TA=-40~85℃(Standard)		 RoHS DataSheetpdf
RV-2123-C2 rv-2123-c2 5.0×3.2×1.2mm SPI BUS 130nA ±20ppm Low power consumption
TA=-40~85℃(Standard)		 RoHS DataSheetpdf
RV-3049-C2 rv-3049-c2 5.0×3.2×1.2mm SPI BUS 800nA ±6.0ppm Temp compensated
TA=-40~85℃(Standard)
TB=-40～+125℃		 RoHS DataSheetpdf
RV-3049-C3 rv-3049-c3 3.7×2.5×0.9mm SPI BUS 800nA ±6.0ppm NRND(非推奨品)
Temp compensated
TA=-40~85℃(Standard)
TB=-40～+125℃		 RoHS DataSheetpdf
NEW
RV-3149-C3		 rv-3149-c7 3.7×2.5×0.9mm SPI BUS 800nA ±6.0ppm Temp compensated
TA=-40~85℃(Standard)
TB=-40～+125℃		 RoHS DataSheetpdf
RV-8063-C7 rv-8063-c7 3.2×1.5×.8mm SPI BUS 190nA ±20ppm Low power consumption
TA=-40~85℃(Standard)		 RoHS DataSheetpdf
