SOC

恒温槽付水晶発振器 OCXO

  • DIP14pin OCXO DIP14ピン恒温槽付水晶発振器
  • CMOS Output CMOS出力
soc
rohs

関連資料 Documents

仕様 Specifications

Parameters
特性項目
Conditions
条件
SOC3V308EC SOC5V308EC
Frequency Range
周波数範囲
10 ~ 40MHz
Supply Voltage
供給電圧
3.3V±5% 5.0V±5%
Input Current
消費電流(max.)
at start 800mA 500mA
when stable(+25℃) 300mA 200mA
Output Level
出力レベル
"0"Level(max)
"1"Level(min)
0.1Vdd
0.9Vdd
(HCMOS 15pF Load)
Symmetry
シンメトリー(max.)
At 0.5Vdd 40/60%
Warm-up Characteristics
立上り特性(max.)
+25℃ 5min after power is on
Based on freq after 30 days
operation
±500ppb
Freq./temp. Characteristics
周波数温度特性(max.)
0℃~+70℃ 300ppb
Freq./Volt. Characteristics
電源変動特性(max.)
Vdd±5% ±50ppb
Aging
エージング(max.)
Based on freq. after 30days
operation
±10ppb/day
±500ppb/year
Frequency Pullability
周波数可変幅(min.)
Control Voltage
制御電圧
±2ppm
(Vcc=1.65±1.5V)
±3ppm
(Vcc=2.5±2.0V)
Reference Value 参考値
Phase noise 位相雑音(at 10MHz)
Offset Frequency dBc/Hz(max)
10Hz -100
100Hz -120
1kHz -130
10kHz -140

THIS IS STANDARD SPECIFICATION, PLEASE ASK KDK SALES FOR CUSTOM SPEC.
本資料記載の内容は一般仕様です。特殊仕様に関しましては別途お問合せ下さい。

ピン接続 Pin Connections

SOC Series
#1 Vcont
#7 GND
#8 OUTPUT
#14 Vdd

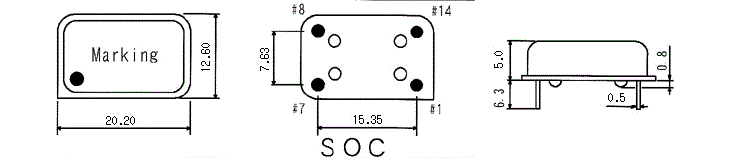

ケース寸法 Case Dimensions

soc

All specification subjected to change without notice.
仕様は変更になる場合があります
